A nice surprise

After work I slipped down to the garage to work on the '02. I didn't feel like launching into a major activity like attaching the clutch slave or brake booster. But no worrry, there's still a thousand piddly little tasks to finish up.

I picked up a box from the attic with random parts, and there were the window wipers. Ok, a simple brainless task, let's put them on. One more thing off the checklist. But as I'm examining them, I notice specks of shiny color coming through the black. Hmmm... the original wiper arms for the early cars was chrome or stainless steel. It wasn't until the later car were they black. I wonder, if when they went for the turbo look, if somebody painted them?

Got my trusty can of carb cleaner and a rag and a few seconds of work showed me this.

hidden treasure

Yeah baby. I grabbed my can of acetone and a chemical mask and went to work. Here's the end result.

Awesome, they look great. That was totally unexpected.

Over the last weekend I made some good progess on some larger tasks.

The driveshaft was connected, so now the car can be pushed around. Very important as I'm still in race season and can't have my lift tied up.

Got the headers installed and connected to the exhaust. Added a E30 series heat shield between the plugs and header, a popular upgrade. Did plugs and wires and hung the coil.  Installed the radiator and started working on the water hoses.

Worked on running the wiring harness, and support pieces for the Weber throttle bits. Hooked up the fuel lines.

 Installed the H4's and custom brackets for the vintage Cibie driving lights.

POR15'd the brake booster in preparation. I had refinished it last year with Rustoleum enamel but it didn't hold up to the brake fluid. We'll see how the POR15 works out.

Lastly, but not least. Here's some trick upgrade parts that are soon to go in.

An new upgraded starter for a 5 series BMW. This is a bolt in upgrade. Just below that is a custom made stainless steel throttle rod fitted with heim joints. This will remove any slop in the stock throttle rod and looks trick in the process. Just below that is a flexible clutch slave fluid line. No great performance advantage, but working with the stock non-flexible line is a huge PITA. This is a major improvement.

So that's where I am so far. Being that I have no fixed date to finish, the project is right on track.

Filling the hole

Lots of good work this weekend. I even got to buy another tool for the garage, that's always worthwhile.

When we last left off, I was putting lipstick on the pig, aka tarting up my front struts. I'm not touching the internals, that's for the winter, but I was making them pretty for the fall fashion season. The next thing was to clean up and get the subframe ready so I can shove the Porsche turbo motor back into the car. (just kidding)

I'm sure you all think restoring old cars is all cocktail parties and idle chatter while servants in white overalls hand me tools on an engraved platter - "The #3 Phillips, James" - the reality is hanging out in the driveway, scrubbing nooks and crannies with a toothbrush and mineral spirits while the neighbors hoot from their deck: How's that old junker going Cris? It ever going to run again? ha ha...

The reality

A couple of nights in the garage working with some POR-15 and the front subframe is looking pretty good.

After some cleanup, but still pretty tired looking

Almost ready to go

While working on this bit I fought a constant battle against scope creep. Well since you're here, why don't we just do the idler bushing .... And those control arm bushings, I bet they could come off in 5 mins, 10 mins top... Get thee behind me!

The only thing stopping me is the sure knowledge that yeah, they could come off in 5 mins, but then I have to order the parts, wait, and then install then, and since that's off, might as well rehab the control arm, and next thing you know Bob's your uncle!    I mean, the next thing it's December and the car still is in pieces. So I controlled my desires. It's really going to just be a temp rehabbing ... this time. (shhhh... I did re-plate all the sway bar hardware - I couldn't help myself)

Meanwhile, I've been working in the engine compartment, my goal is by the weekend, for it to be filled with mechanical bits.

Engine compartment spiffing up in progress

I installed the new stock firewall pad that's been sitting in my office for the last several months. Next spent time tediously sanding all the brake lines to get rid of the paint overspray. I also touched up all the surfaces where the paint shop guys missed.

Ok, with the destination all prep'd and ready to go, the subframe as rehabbed as it was going to get in this go-round, now's the time. Time to head to Harbor Freight and buy another tool.

1500 lb ATV/Motorcycle (for Harleys) lift

I've done my fair share of jury-rigged engine hoisting assemblies, consisting of collections of mismatched lumber, bungie cords and multiple jacks. And since I have a nicely detailed engine and tranny that will be bolted together to the subframe creating a large amount of mass that wants nothing better than to demonstrate the  non-theoretical application of the law of gravity, I decided it was time to go pro. And considering that any helpers I had will have already gotten into the beer fridge by the time I would be ready ... some mechanical help will be needed. I bought an ATV lift - with a 20% off coupon of course - from the local Harbor Freight.

First the motor needed some final prep. I pulled the upper timing cover and bled the timing belt tensioner piston and re-buttoned it back up. Next the motor was placed into the subframe and bolted up to the motor mounts. With the clutch reattached we were ready for the transmission.

Subframe, motor and clutch in position

Shinny transmission docked

Struts added to make the whole thing unwieldy to handle

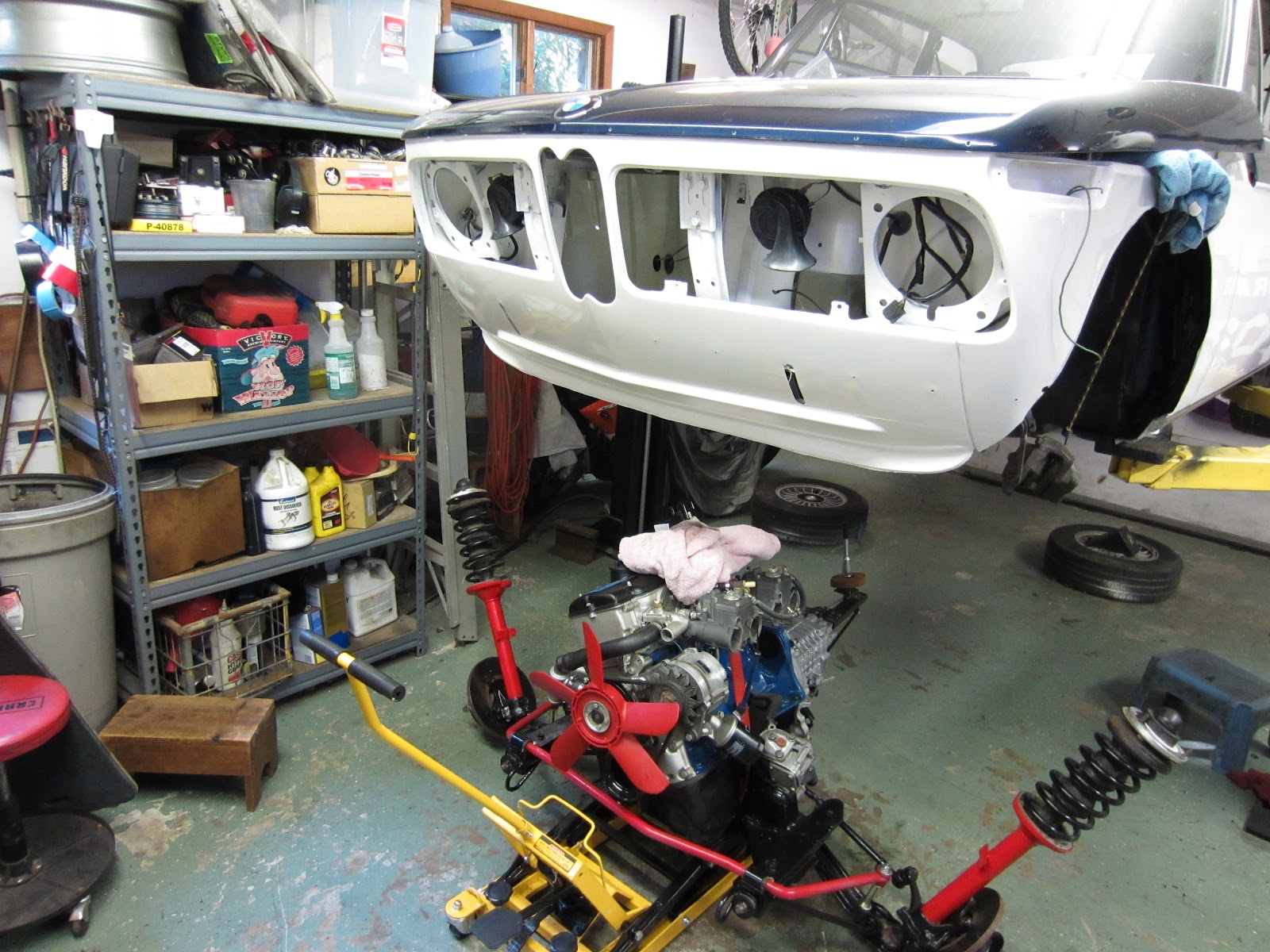

The shuttle is approaching the mother-ship

slowly, slowly ....

Ta-da! Shuttle is docked.

Back home again, it's been a while ... exactly 7 months ago it was removed.

Just to prove it's not photo-shopped ...

Still a large amount of work to go, but this is a significant milestone. I'm going to go clean up and have a beer. No make that several beers...

More bimmer progress

I had a good series of races at NJMP last weekend and will get to them in another post shortly. But first some 2002 updates. I've been toiling away in the garage, making good progress. I'm thinking this is the 2nd phase of my '02 ownership. The first was the mechanical reliability phase. I spent the first couple of years just fixing all the little piddly stuff the previous owners ignored or neglected or just screwed up. Eventually I reached a point where the car was reliable and fun to drive. Things like turn signals, heat, etc just worked. That brought me to the 2nd phase where I'm at now: Serious Cosmetic and Mechanical Restoration. I'd say I'm about 85% complete now. Most of the interior is done. I've been working from the back forward and I'm just about ready to start in the motor compartment. The 3rd phase will be suspension replacement and tuning. That will probably take place this winter when my credit cards aren't so tender to the touch.

So lets go show what I've been up to.

The trunk area is done. gas tank connected, rear trim installed, rear "roundie" lights installed and wired. New trunk gasket glued and installed. Trunk panels cleaned and scrubbed.

Next has been the installation of the stainless steel belt-line trim that I was part of the group buy from BMW2002FAQ.com. It took almost 6 months from order to delivery but it's finally here. With the paint job putting the old tired, and dented trim back on was a non-starter. I didn't replace all the trim, that would be several thousands dollars if you can find it, but kept the decent pieces. When painting I had the lower knee trim deleted, so I decided to just replace the belt-line & rocker panel trim and front grilles.

Stainless steel trunk trim installed

new rocker trim in place.

Even though I got rid of the trunk spoiler, I'm keeping the fender flares. I haven't decided on whether to install the front air dam or not. I'm leaning to leaving it off. We'll see.

Fender Flare - original BMW part for the Turbo

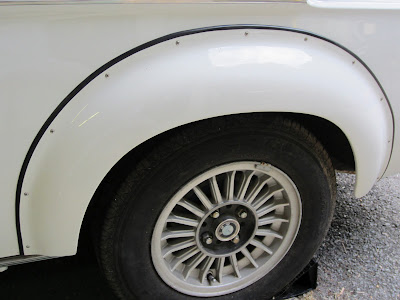

Flares installed - New sealing gaskets from Ireland Racing, and stainless
steel install kit from Walloth and Nesch in Germany

As I head toward the front of the car I did a little prep work on some hood hardware.

As removed, old and tired and corroded.

After a trip to the plating station

Installed the door seals. These were a pain in the ass. There's a tiny grooved slot you need to work the seal into otherwise it won't seal correctly. And you can only do about 4-6 inches at a time. You goop up the door and the seal with trim adhesive, wait 10 mins for both to get tacky and then try to fit it all together in the groove and not smear the goop over everything. If your successful, clamp it and go away and wait for it to dry. Then do the next 4 inches. On a good night I might get 12-18 inches done. Luckily I had bought the drivers side seal about a year ago as they are over $200 apiece now and have been on backorder forever.

inch by inch, ....

My old rocker panel trim piece was seriously screwed up so I ended up throwing it away and driving the car without it. That let a nice stream of air in at speed since the door wasn't sealed - made it noisy also. Not so bad in the summer heat, but sucked when it was 35 degrees out. I had Steve at BluntTech send me two new trim strips.

New interior rocker trim

Ok, other than doing something about my dirty headliner I've arrived at the front. First order of business is to drop the subframe because eventually the motor and tranny will be bolted to in and lifted back into the car. But we have some work to do first (of course).

Naked subframe - rated R for rusty.

I unbolted the calipers and hung them from the car, unbolted the shock towers, undid the 6 bolts holding the subframe and lifted the car up into the air leaving the subframe perched on the jack.

Remember Phase III is the Suspension Rehab/Tune and that's scheduled for this winter so I'm not going to go hog wild here. The goal is to clean stuff up I can and get the running gear back into the car and working again. It's been down for 8 months now and I'd like to have it back on the road this fall.

So the plan is to unbolt bits and pieces, knock off the rust, a little paint, a little POR15, reassemble, attach the motor and tranny and stuff. There's still a lot of work ahead without wandering down a sideroad.

Closer view of the subframe, steering box, struts, etc.
Not great, but not too bad either.

Now the struts, that's another story.

Yuck.

I know, I know. I said no scope creep, but I just can't re-bolt those struts back on the car. Just can't do it. Off to the Restoration Chamber!

After some serious wire brushing

Applying lipstick to the pig - aka Rustoleum Safety Red

Okay, they cleaned up nice.

The inserts and springs will have to wait until this winter after I decide what to do with the suspension. I thinking about an Ireland Stage 1 or 2 kit. But at least it will look nice until then.

Now that it's back on the lift, I'll be spending some quality time inside the engine compartment - some paint touchups, re-wrapping the wiring, cleaning up some paint over-spray, etc.

Hopefully my careful labeling of the master fuse panel will pay off as I reconnect everything.

Plenty more work to come but it's all good. My beer fridge is calling my name, telling me it has an Otter Creek Black IPA and a Stovepipe Porter as well.
